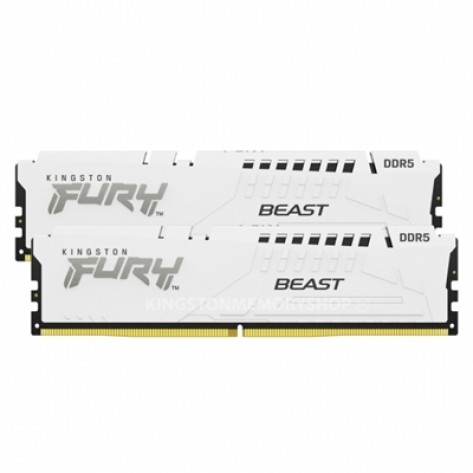

Kingston FURY Beast RAM Module, 32 GB (2 x 16GB), DDR5, 5600 MHz, On-die ECC, Unbuffered, 288-pin, DIMM

Kingston FURY KF556C36BWEK2-32 is a kit of two 2G x 64-bit (16GB) DDR5-5600 CL36 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports AMD? EXPO v1.0 and Intel? Extreme Memory Profiles (Intel? XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-5600 at a low latency timing of 36-38-38 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

Specifications

Power Supply:
VDD = 1.1V Typical

VDDQ
1.1V Typical

VPP
1.8V Typical

VDDSPD
1.8V to 2.0V

On-Die ECC

Height
1.37? (34.9mm), w/heatsink

CL(IDD)
40 cycles

Row Cycle Time (tRCmin)
48ns(min.)

Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)

Row Active Time (tRASmin)
32ns(min.)

UL Rating
94 V - 0

Operating Temperature
0C to +85C

Storage Temperature
-55C to +100C
